Smartflow Versaswitch Limit Switch installs into an injection mold to indicate location of the core, preventing tool damage.

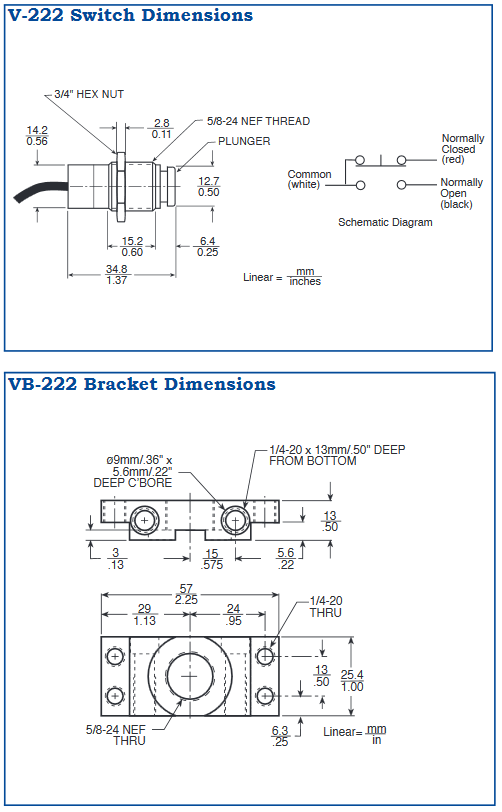

Versaswitch is easily installed into a 5/8″ – 24 female thread. The switch actuates when 3.5 lbs of force is applied to the plunger. Actuation height is adjusted by threading the switch to the correct position in the installation. The switch is held in place via a lock washer and hex nut. SPDT snap action switch provides a simple, positive indication of the mold or core location.
Optional mounting bracket is available to aid installation. Threaded fastener holes facilitate mounting the switch in many positions. The bracket is made from corrosion-resistant anodized aluminum.
V-222 – Versaswitch includes lockwasher and nut
VB-222 – Mounting Bracket red anodized aluminum
Electrical – 240 VAC, 5 Amps Resistive
Operating Temperature – 180 degrees F max, 82 degrees C max
Switching – SPDT
Operating Force – 2.5 lbs (1.605kg)
Pretravel to operating point – 0.06″ (1.55mm)
Overtravel – 0.01″ (.255mm)
Enclosure – watertight per IP68S
Body – Anodized Aluminum / Epoxy
Plunger – Stainless Steel
Nut – Anodized Aluminum
Lockwasher – Zinc-Plated Steel
Wire Leads – 22ga stranded, 3 conductor, shielded cable, 6 ft (1.8M) long, ends stripped and tinned
