Smartflow Thinswitch Limit switch verifies ejector plate return in plastics injection molds. This small switch is thin enough to fit inside the ejector housing. It can also be used for core slides or places where space is limited. Choose from the original design or the liquid resistant housing for areas where water or oil spray is present.
The Thinswitch Limit Switch has been tested for reliability over 10 million cycles without failure.

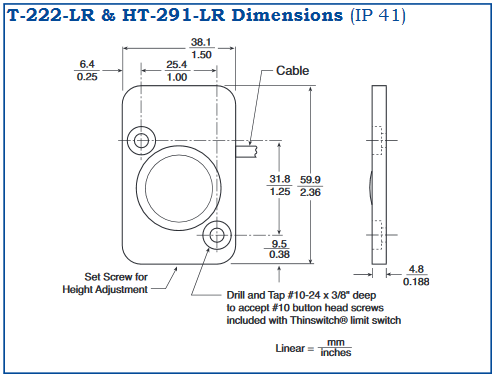

T-222-LR (standard) and HT-291-LR (high temp).
Electrical 250VAC – 5 amps resistive, 4 amps inductive
28VDC (sea level) – 5 amps resistive, 4 amps inductive
Body – Glass Filled Nylon
Spring – Stainless Steel
Back Cover – Polyester Film
Wire Leads – 22 ga stranded, 3 conductor, shielded cable 6 ft 1.8m long ends stripped and tinned
