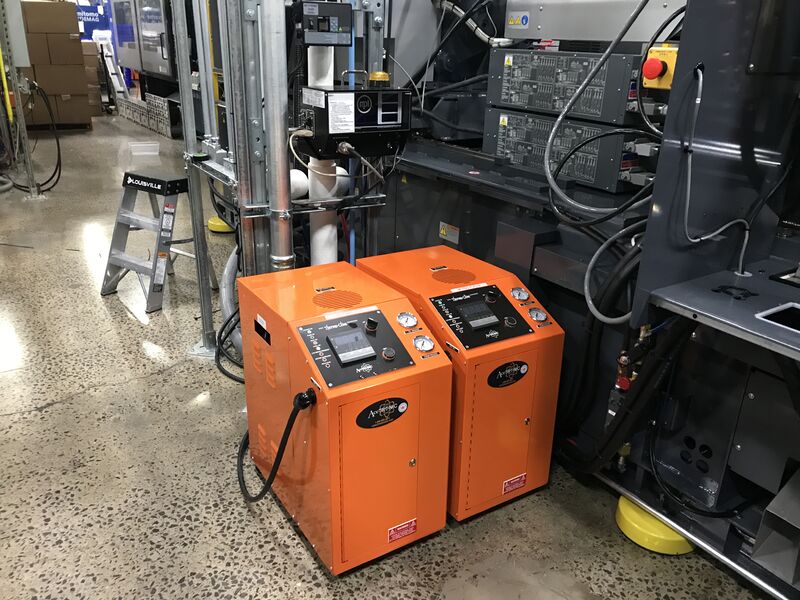

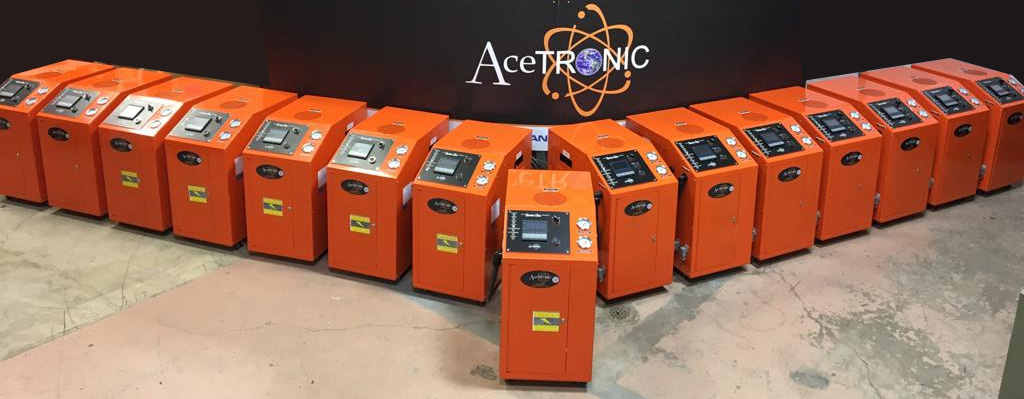

Thermocline Water Temperature Control Unit

Control your process with Thermocline Water Temperature Control Units

With minimum internal piping the THERMOCLINE water temperature control unit (TCU) is easily accessible and trouble shooting is further simplified by the user-friendly design. A footprint of only 16.5″x18″ ensures minimum floor space occupied by the unit. Built in Canada. ESA Certified.

  • 9-24 kW, 1-5 HP
  • Field Serviceable
  • Calibration to ISO 17025
  • Easy to Operate
  • Toll free Tech Support
  • Custom Design Units Available

Themocline Water Temperature Controller (TCU) Features

  • Microprocessor PID Controller
  • Process and Set Point Display
  • Auto Shutdown on Low Water Pressure
  • High Temperature Shut Down
  • Adjustable Auto Vent
  • High Pressure Relief Valve
  • Fault Indicator for Motor Overload
  • Fault Indicator for Low Water Pressure
  • Grounded Control Circuit
  • Long Life Silicone Carbide Seal
  • Integrated Anodized Cast
  • Aluminum Tank
  • Minimal Piping
  • ESA Certified
  • Suitable for Operation up to 250 degrees F

Standard Features

Instrumentation
  • Auto Tuning PID Controller
  • Bright Process and set point display
  • Delivery and Return Gauges
Diagnostics
  • Fault Indicator for Motor Overload
  • Fault Indicator for Low Water Pressure
Pump
  • Construction: Bronze Fitted
  • Impeller: Brass
  • Casing: Cast Iron (A48-30)
  • O-Ring: Buna-N
  • Adapter: 416 Stainless Steel
  • Pump Seal: Silicone Carbide
Heater
  • Element: Incoloy Sheath
  • Flange: Carbon Steel Bolt Mount
  • Vessel: Anodized Aluminum Alloy
  • Sizes: 9,12,18, and 24kW
Motor
  • 3 Phase, 1 HP to 5 HP
  • Low Maintenance
  • Quiet Operation
Cabinet
  • Hinged Control Panel Door
  • Removable Panels
  • Portable with Swivel Casters
  • 10 ft of 10/4 AWG Cord
Safety Systems
  • CSA Approved Components
  • High Pressure Relief Valve (150 psi)
  • Fused Circuitry
  • Auto Shut Down on Low Water Pressure
  • High Temperature Shut Down
  • Adjustable Auto Air Vent
Options
  • 1/2″ Proportional Cooling Valve
  • Communications Interface RS 485
  • High / Low Audible Temperature Alarm
  • Contact Output for Interlock or Alarm

Always ready when you are.
