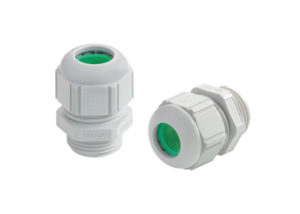

SKINTOP ST-HF-M

SKINTOP ST-HF-M

Halogen-free STrain Relief with Metric Thread

SKINTOP® ST-HF-M is an easy-to-assemble, halogen-free, metric cable gland for use when personal and property protection is a priority such as public buildings, underground railways, mass transportation systems, ventilation systems, and industrial plants.

Application Advantage

• Completely halogen-free providing safe LSZH performance
• Extremely flame-retardant and self-extinguishing with no
  dripping
• The heavy duty SKINTOP® design provides great pullout
  strength and very reliable strain relief
• Superior integrated locking mechanism includes an internal
  ratchet for vibration-proof protection
• Multi-trapezoidal thread requires just one twist to tighten

Technical Data

Material:

• Body: Halogen-free polyamide, V-0 per UL 94
• Bushing: Halogen-free
• O-ring: Halogen-free

Temperature Range: -20°C to +100°C
Color: Light gray (RAL 7035)
Protection: IP68, 5 bar (Exceeds NEMA 6/6P pressure
rating)
