SKINTOP® SOLAR/SOLAR (plus)

SKINTOP® SOLAR/SOLAR (plus)

Strain Relief for Photovoltaic Applications with Metric Thread

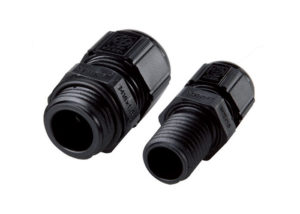

SKINTOP® SOLAR cable glands are designed to meet the increasingly strict requirements for solar equipment. The glands are made of a speciallydeveloped polycarbonate compound, guaranteeing excellent weather resistance in hot conditions, rain, snow or ice. SKINTOP® glands can also save space whenever multiple cables are routed to the combiner box.

• UV and weather resistant per UL F1 for outdoor use
• Passes cold impact test per UL 1703/UL 764C
• Excellent strain relief
• Permanent vibration protection
• Extremely flame-retardant: V-0 per UL 94/94-5VA

Technical Data

• Material

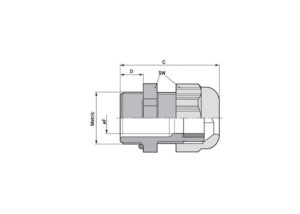

  SKINTOP® SOLAR:
  – Body: Polycarbonate

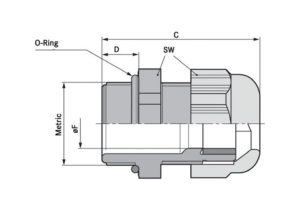

  – Seal: CRSKINTOP® SOLAR (plus):
  – Body: Polycarbonate
  – Seal: Silicone
  – O-ring: Silicone
• Temperature Range:
  – SKINTOP® SOLAR: -40°C to +100°C
  – SKINTOP® SOLAR (plus): -40°C to +12
• Color: Black (RAL 9005), UV resistant
• Protection: IP68, 5 bar
  (Exceeds NEMA 6/6P pressure
  rating)
• Approvals: Passes cold impact test per
  UL 1703/UL 764C
