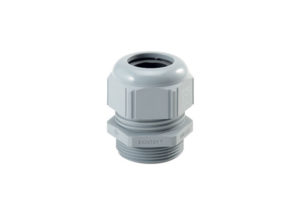

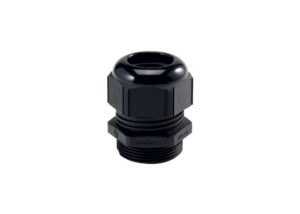

SkinTop SLM / SLRM Strain Relief with Metric Thread

SKINTOP® SLM/SLRM is a durable, liquid-tight, easy-to-assemble strain relief cable gland with metric thread that is universally suited for all types
of machinery & equipment, including automation, motion control, process control, and robotics.

• The heavy duty SKINTOP® design provides great pullout strength and very reliable strain relief
• Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection
• Multi-trapezoidal thread requires just one twist to tighten
• Generous high-quality neoprene bushing provides a liquidtight and dust-proof hermetic seal

Material: – Body: Polyamide – Bushing: CR
Locknuts: Included
Temperature Range: – Static: -40°C to +100°C – Dynamic: -20°C to +100°C
Color: Black (RAL 9005), UV resistant Gray (RAL 7001)
Protection: 70 PSI – Seal: IP69K IP68, 5 bar (E xceeds NEMA 6/6P pressure rating)
