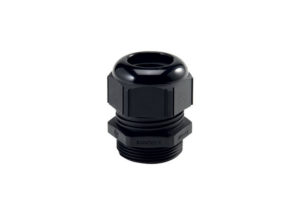

Skintop SL Non Metallic Strain Relief with PG Thread

SKINTOP® SL/SLR is a durable, liquid-tight, easy-to-assemble strain relief cable gland with PG thread that is universally suited for all types of machinery & equipment, including automation, motion control, process control and robotics.

• The heavy duty SKINTOP® design provides great pullout strength and very reliable strain relief
• Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection
• Multi-trapezoidal thread requires just one twist to tighten
• Generous high-quality neoprene bushing provides a liquid tight and dust-proof hermetic seal

Technical Data

Material:

Body:

Polyamide – Bushing: CR
Locknuts:  Included

Temperature Range: – Static: -40°C to +80°C – Dynamic: -20°C to +80°C

Color: Black (RAL 9005), UV resistant Gray (RAL 7001)
Protection: 70 PSI – Seal: IP68, 5 bar (Exceeds NEMA 6/6P pressure rating)
