Sensormate QE1008-W

Fully Calibrate Tie Bar Stretch on your Injection Mold Systems

The magnetic strain gauge sensor QE1008-W measure the surface-strain directly at the mounting location in the same quality as bonded strain gauges.

The magnetic press-on technology, developed by Sensormate AG, presses the strain gauges under the stainless protective film so strongly against the surface to be measured that frictional contact occurs.

The mounting of the sensor is non-destructive, very fast and simple.

The integrated signal amplifier with wireless transmission module makes the QE1008-W a state-of-the-art sensor with unsurpassed features and user-friendliness.

Description

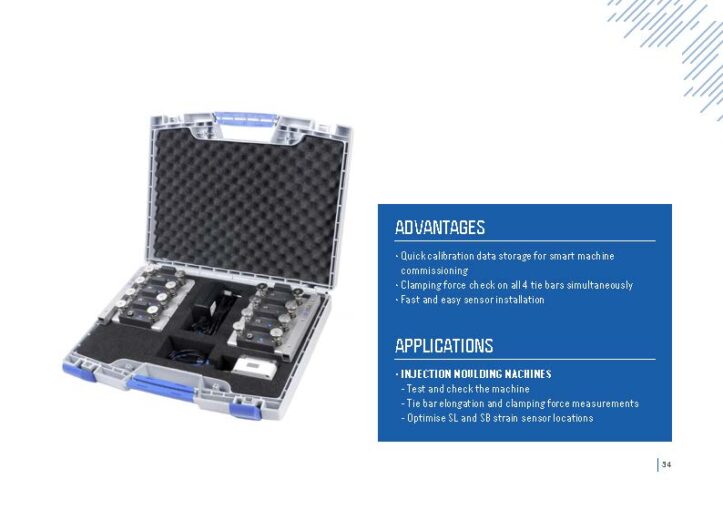

The compact set is ready in minutes and allows the alignment of injection moulding machines in the shortest time possible.
The QE1008W is mounted in seconds and needs no cables. It presses strain gauges under the stainless protective foil by
means of 2 magnets onto the surface to be measured with such force that friction replaces the bonding normally used to
fix strain gauges. Mounting is very fast and the strain gauge is protected.


The sensor cannot be overloaded. The integrated amplifier and wireless module make this unit a state-of-theart sensor with
unsurpassed features and ease of use.

  • Complete set with sensors and receiver with usb interface for software alignment
  • Wireless transmission
  • Magnet mounting
  • New inspectmate Android app to quickly and easily read data.
  • Complete system for the simultaneous strain-measurement on up to four tie bars
  • Direct display of strain values in με, kN or t (via our Inspectmate software)
  • Wireless transmission (2.4GHz), no cables
  • Quick and non-destructive assembly with magnetic press-on technology
  • High accuracy and linearity in tension and pressure (like bonded strain gauges)
  • Ideal for use on presses, injection-moulding and die-casting machines
  • Application on tie bars with a diameter of 45mm or higher and flat surfaces
  • Dynamic applications
  • Each magnetic-mount strain sensor has an integrated signal amplifier
  • Integrated rechargeable battery with up to 8h opera¬ting time
  • Receiver with USB port
  • Very compact and easy to use system

Mobile App Links

  • Sensormate iPhone App Link : Sensormate is a simple, user-friendly front end to the QE1008-W and other GEFRAN products. Inspect your sensors’ output live in the data logger, make measurements, and send .CSV data files wherever you like.
  • Sensormate Android App Link: Sensormate is a simple, user-friendly front end to the QE1008-W and other GEFRAN products. Inspect your sensors’ output live in the data logger, make measurements, and send .CSV data files wherever you like.

Application Catalog

https://www.gefran.com/en/us/download/4790/attachment/en

Data Sheet

https://www.gefran.com/en/us/download/4289/attachment/en
