Smartflow mechanical flowmeters are durable, vane-operated devices that provide visual indication of flow rate in many different styles and sizes. Rugged wetted parts are compatible with many process liquids.

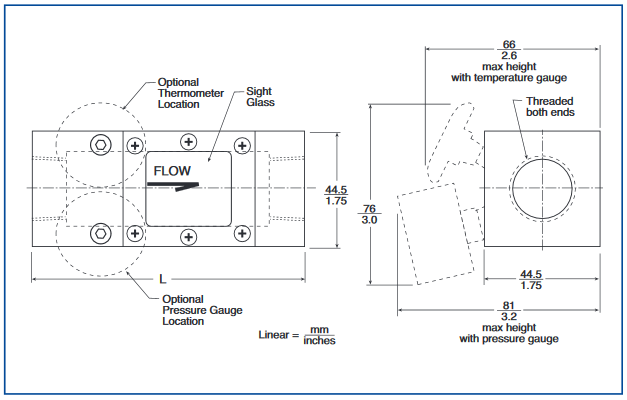

Optional temperature and pressure gauges add functionality and flexibility to Smartflow flowmeters. Brass quick-connect fittings are available on the smaller flowmeteres to create an excellent, portable tool for determining flow and locating clogged lines.
Body: Anodized Aluminum
Sight Glass: Polysulfone
Vane: Stainless Steel
Spring: Stainless Steel
Pin: Stainless Steel
Gasket: Neoprene
Operating Temperature max: 210 degrees Fahrenheit (99 Celsius)
Operating Pressure max: 100 psi (6.9 bar)
Optional Thermometer: 0 degrees to 250 degrees Fahrenheit, (-20 degrees to 120 degrees Celsius)
Optional Pressure Gauge: +3% accuracy (full scale)
| F6 | B20 | |||
|---|---|---|---|---|
| Inlet Size | Flow Range | |||
| 3/4″ NPT(F) | F6 | 20 | 2-20 gpm (gallons per minute) | |
| 3/4″ BSPP(F) | F6B | 20 | 2-20 gpm (gallons per minute) | |
| 1″ NPT(F) | F8 | 75 | 7-75 lpm (liters per minute) | |
| 1″ NPT(F) | F8B | 20 | 7-75 gpm (gallons per minute) | |
| A | Flowmeter only | |||
| B | Thermometer | |||
| C1 | Thermometer and 30 psi Pressure Gauge | |||
| C2 | Thermometer and 60 psi Pressure Gauge | |||
| C3 | Thermometer and 100 psi Pressure Gauge | |||
| CL | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | |||
| F1 | 30 psi Pressure Gauge | |||
| F2 | 60 psi Pressure Gauge | |||
| F3 | 100 psi Pressure Gauge | |||
| FL | Liquid-Filled Pressure Gauge (100 psi) | |||
