Large Mechanical Flowmeter – F8-B-40

Large Mechanical Flowmeter - F8-b-40

Smartflow mechanical flowmeters are durable, vane-operated devices that provide visual indication of flow rate in many different styles and sizes.  Rugged wetted parts are compatible with many process liquids.

Optional temperature and pressure gauges add functionality and flexibility to Smartflow flowmeters.  Brass quick-connect fittings are available on the smaller flowmeteres to create an excellent, portable tool for determining flow and locating clogged lines.

Features and Benefits

  • Compact size works well in restricted spaced locations
  • Rugged construction gives years of dependable service
  • Variety of inlet sizes provides exactly

Wetted Parts and Materials

Body: Anodized Aluminum
Sight Glass: Polysulfone
Vane: Stainless Steel
Spring: Stainless Steel
Pin: Stainless Steel
Gasket: Neoprene
Thermometer: 0° to 250°F (-20° to 120°C)
Pressure Gauge – 0 to 100 psi, (0 to 700kg/cm2)

Specifications

Operating Temperature max:  210 degrees Fahrenheit (99 Celsius)
Operating Pressure max:  100 psi (6.9 bar)
Accuracy – +10%
Optional Thermometer: 0 degrees to 250 degrees Fahrenheit, (-20 degrees to 120 degrees Celsius), +2% accuracy (full scale)
Optional Pressure Gauge:  +3% accuracy (full scale)

F8 B40

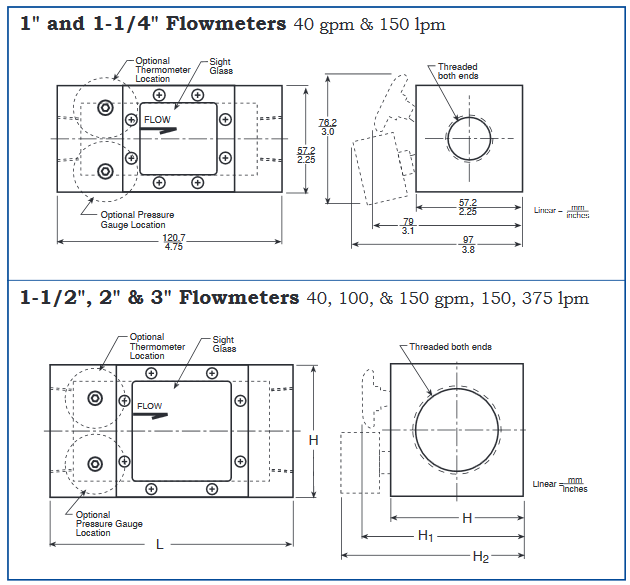

Inlet Size Flow Range
1″ NPT(F) F8 40 2.5 – 40 gpm
1″ BSPP(F) F8B
1-1/4″ NPT(F) F10 100 10-100 gpm ((1-1/2″ or 2″ inlets only)
1-1/2″ NPT(F) F12
1-1/2″ BSPP(F) F12B 150G 10-150 gpm (2″ or 3″ inlets only)
2″ NPT(F) F16
2″ BSPP(F) F16B 150 19-150 lpm (1″ or 1-1/4″ inlets only)
3″ NPT(F) F24 375 38 – 375 lpm (1-1/2″ or 2″ inlets only)
A Flowmeter only
B Thermometer
C1 Thermometer and 30 psi Pressure Gauge
C2 Thermometer and 60 psi Pressure Gauge
C3 Thermometer and 100 psi Pressure Gauge
CL Thermometer and Liquid-Filled Pressure Gauge (100 psi)
F1 30 psi Pressure Gauge
F2 60 psi Pressure Gauge
F3 100 psi Pressure Gauge
FL Liquid-Filled Pressure Gauge (100 psi)

Large Mechanical Flowmeter F8b40
