Modular – Hot Runner Mainframe

TEMPERATURE CONTROL SYSTEMS

Transformers can be built into your system to allow for electrical flexibility should the electrical supply be insufficient at your facility. A standard configuration will accept DME, MCS, IMS, and ATHENA. Each mainframes requires no external relays or Contactors. The modules route power directly to the heaters. In addition, the mainframes are portable and can be disconnected quickly and reconnected to another mold. The control modules can be changed without powering down the unit.

Optional features can be added to our mainframes, such as Audible & Visible Alarms, Machine Shutdown and Reset.

Customized Mainframes

AceTronic can customize the mainframes to your unique application, no matter what the configuration. All units are certified by the Electrical Safety Authority . Units are stock and are ready for sameday delivery . Call us and let AceTronic help you with your upcoming hot runner temperature control system so that we can maximize the cost effectiveness of your purchase.

Wiring

1, 2, and 3 zone systems include input power cable. The systems accept 3 wire, single phase, 240VAC 50-60Hz input power.

5 zone and higher capacities are pre-wired for 3 phase, 4 wire, 240VAC 50-60Hz installations. Several other voltage, phase, and load balancing requirements can be met through following diagrams found on the rear access covers of the mainframe. Adjustments can be made on field by technical personnel, or the units can be pre-wired to specifications at time of order. These do not include cable for installation.

• A standard configuration will accept DME, MCS, IMS, and ATHENA
• No external relays or contactors required
• Modules route power directly to the heaters
• Mainframes are portable
• Quick & easy connection
• Change without powering down

Hotrunner Module(s)

Dual lines LED display, Easy operation

• Unit display
• Auto/Manual/Standby function PID auto temperature control
• Selectable two thermocouple types (J or K)
• Selectable two temperature scales (C or F)
• Selectable two trigger output modes (Zero cross or phase angle)
• Multi diagnostic & alarm function
• Multi self-protect and equipment-protect function
• Selectable two start modes (Soft-start or Full-speed)
• 3-levels parameters, use lock to keep high level parameters safe
• Recover parameters default easily
• Calibration function

Hotrunner Mainframe

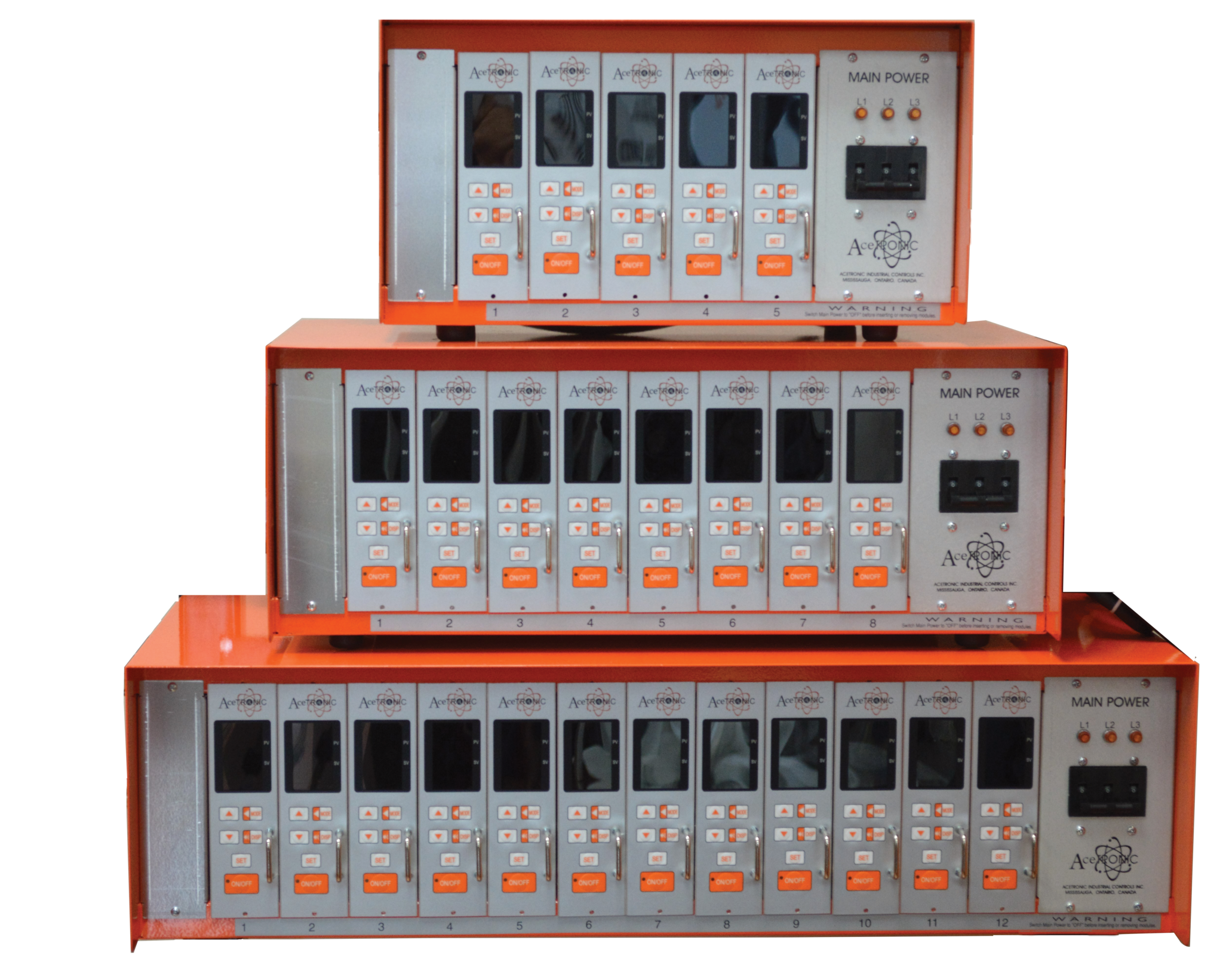

AceTronic mainframes come in 5, 8, & 12 Zone base configurations.

Extra zone capacity can be added by stacking the mainframes into one of twelve possible configurations we offer as standard units. The stacked unit maximum that is offered can hold up to 60 controllers. Transformers can be built into your system to allow for electrical flexibility should the electrical supply be insufficient at your facility.

• Each mainframe is supplied with 240V 3 phase breaker
• Type J Thermocouple Input
• Line Voltage Indicator LEDs
• Cooling Fan
• ESA Certified
• Power Output 240V, 15A or 20A / 30A (Optional)
