Stainless Steel Manifolds with Conventional Ports

Categories: ,
Smartflow Logo

Description

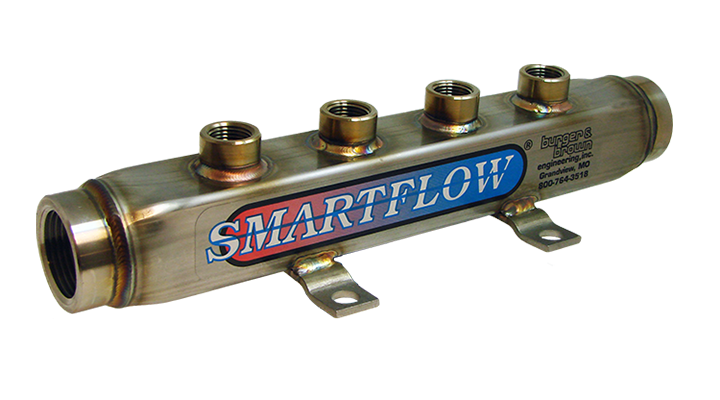

Stainless Steel Manifolds Conventional Ports

* Custom Manifolds Available

PDF Icon
Smartflow stainless steel manifolds are formed and welded from 304 stainless steel. The manifolds are 100% leak tested for quality assurance before shipping. Conventional Ports have the most durable threaded connections available in our Stainless Steel Manifold offering.

Smartflow stainless steel manifolds are excellent for high-flow applications where chemical compatibility and corrosion-resistance are important. Manifold bodies are made from 1-1/2″ or 2″ square tube to allow maximum flow. Custom modifications are easily handled to provide the exact configuration you need.

Specifications

  • Material: 304 Stainless Steel
  • Temperature Rating: up to 250 degrees Farenheit / 121 degrees Celsius
  • Maximum Pressure Ratings: Gas: 125 psi, Liquid: 250 psi

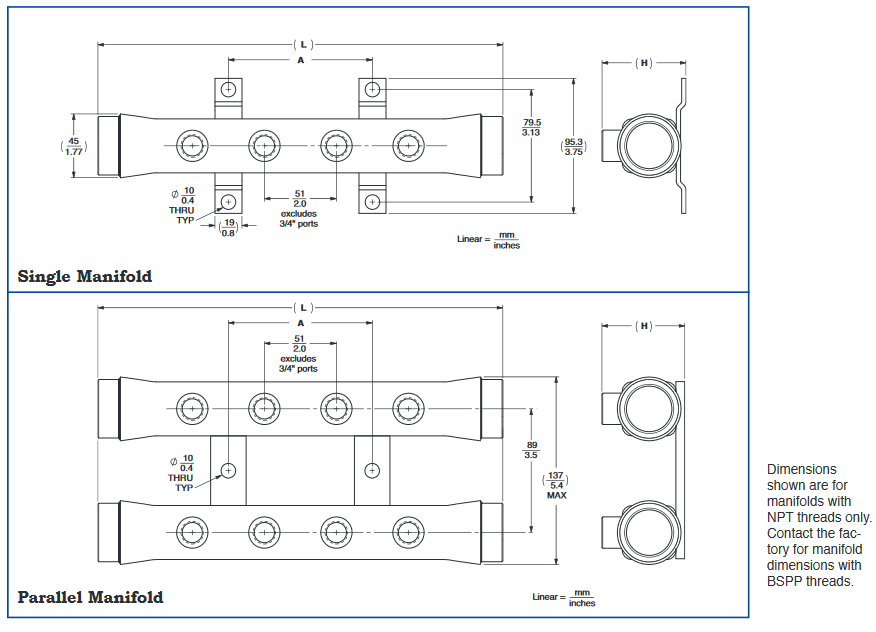

Model Numbers and Dimensions (3/8″ & 1/2″ ports only)

Single Manifolds Parallel Manifolds Dimension A Dimension L Dimension H
1″ Inlet 8SS – 4 – * – 2 -A
8SS – 6 – * – 2 – A
8PSS – 8 – * – 2 -A
8PSS – 12 – * – 2 – A
102mm/4″
203 / 8″
286mm/11.25″
387mm/15.25″
64mm
2.5″ max
8SS – 8 – * – 2 – A
8SS – 10 – * -2 -A
8SS – 12 – * -2 – A
8PSS – 16 – * – 2 – A
8PSS – 20 – * – 2 – A
8PSS – 24 – * – 2 – A
305mm/12″
406mm/16″
508mm/20″
488mm/19.25″
591mm/23.25″
692mm/27.25″
8SS – 14 – * – 2 – A
8SS – 16 – * – 2 – A
8PSS – 28 – * – 2 – A
8PSS – 32 – * -2 – A
610mm/24″
711mm/28″
794mm/31.25″
895mm/35.25″
1-1/2″ Inlet 12SS – 4 – * – 2 – A
12SS – 6 – * – 2 – A
12PSS – 8 – * – 2 – A
12PSS – 12 – * – 2 – A
102mm/4″
203 / 8″
299mm/11.75″
400mm/15.75″
76mm
3″ max
12SS – 8 – * – 2 – A
12SS – 10 – * – 2 – A
12SS – 12 – * – 2 – A
12PSS – 16 – * – 2 – A
12PSS – 20 – * – 2 – A
12PSS – 24 – * – 2 – A
305mm/12″
406mm/16″
508mm/20″
502mm/19.75″
603mm/23.75″
705mm/27.75″
12SS – 14 – * – 2 – A
12SS – 16 – * – 2 – A
12PSS – 28 – * – 2 – A
12PSS – 32 – * – 2 – A
610mm/24″
711mm/28″
806mm/31.75″
908mm/35.75″

Stainless Steel Manifolds with Conventional Ports

Brand

Smartflow
